RGBA Extract

Extract RGBA channel on an image, each channel becomes its own image.

Node Data
Display name
RGBA Extract
Internal name
Node_RGB_Channel
Inheritances
Node_Processor
Node_RGB_Channel
Inputs
surface	Surface In
enum	Output Type
bool	Keep Alpha
bool	Output Array
Outputs
surface	Red
surface	Green
surface	Blue
surface	Alpha
Attributes
Color Depth

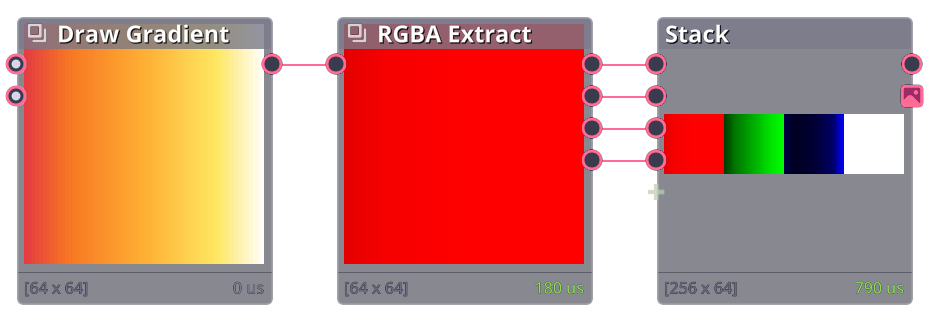

RGB Extract nodes extract a single surface in to 4 surfaces, each for RGBA value.
